Laser Tracker in Industrial Metrology: When and How to Use It

In aerospace and heavy assembly, micron-level precision over ten meters is a task where traditional tools fail. This is the domain of the laser tracker, a device redefining large-scale metrology by combining portability with volumetric accuracy. Whether calibrating a CNC gantry or inspecting a fuselage, mastering absolute distance measurement (ADM) is critical.

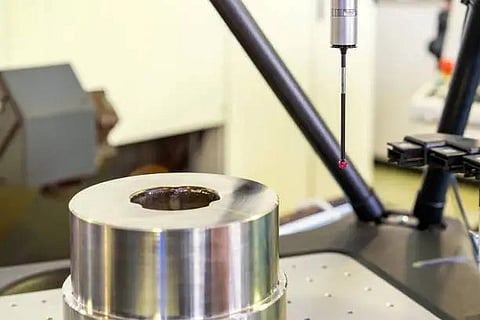

The fundamental advantage of a laser tracker lies in its ability to follow a spherically mounted retroreflector (SMR) using high-precision encoders. While a fixed coordinate measuring machine offers local accuracy, its physical envelope limits utility for parts exceeding a few meters.

In my experience, when transitioning to ship blocks or wind turbine blades, the tracker is the only solution. Modern systems deliver a Maximum Permissible Error (MPE) of approximately ± 15 µm at 1.5 m, extending to ± 50 µm at 10 m. This allows for high-fidelity laser tracker measurement in environments where temperature and vibration normally compromise data.

Scenarios where a tracker is the only viable solution:

• Aircraft Fuselage Alignment: Ensuring separate sections are perfectly coaxial.

• Industrial Robot Calibration: Correcting the positional accuracy of a 6-axis arm.

• Large Mold Inspection: Verifying surface profiles for maritime or wind energy.

• Machine Tool Leveling: Aligning rails of massive CNC mills to ensure linear travel.

Repeatability depends on nest placement. I recommend a "surround" strategy–placing nests above and below the workpiece to minimize angular error propagation.

1. Stable Foundation: Mount the tracker on a heavy-duty base to prevent drift.

2. Environmental Compensation: Monitor temperature and pressure as they affect the laser's refractive index.

3. Reference Point Setting: Establish a coordinate system using fixed SMR nests.

4. Active Measurement: Sweep the spherically mounted retroreflector across critical datums.

5. Data Analysis: Process points in software to generate GD&T reports.

When evaluating a tracker, ADM performance and software compatibility matter most. For many, the choice between a new or a used laser tracker comes down to entry cost. A used laser tracker from an expert platform often provides the necessary accuracy for industrial robot calibration at a lower price, provided the unit has passed independent quality control.

Key specs to prioritize:

• ADM Range: Vital for re-acquiring the beam without returning to "home".

• IP Rating: Essential near machining centers with dust or coolant mist.

• Software Interoperability: Ensure integration with existing inspection suites.

Integrating a laser tracker brings lab-grade precision to the factory floor. By mastering SMR placement and thermal compensation, you ensure large-scale assemblies meet rigorous engineering standards.
